CATIONIC BITUMEN EMULSIONS
Emulsion Tanks
Is your annual emulsion off-take above 200 tonnes? We will provide a professional vertical storage tank on loan directly at your site.
Why a vertical tank
Vertical tanks are recommended for bitumen emulsion storage above all for the advantages the vertical design brings to the storage process, and for their energy efficiency, which is significantly higher than that of horizontal tanks. The tank loan is intended for customers with an annual consumption above 200 tonnes of emulsion.
Tank parameters
- Designsteel, vertical axis
- Insulation100 mm mineral wool
- Capacity20–30 m³
- Diameter2.5–2.7 m
- Height7–10 m
- Weight7–10 t
- Power consumptionmax. 14 kW
- Outer shellgalvanised sheet
- Heatingelectric
- MediumC60 / C65 emulsion

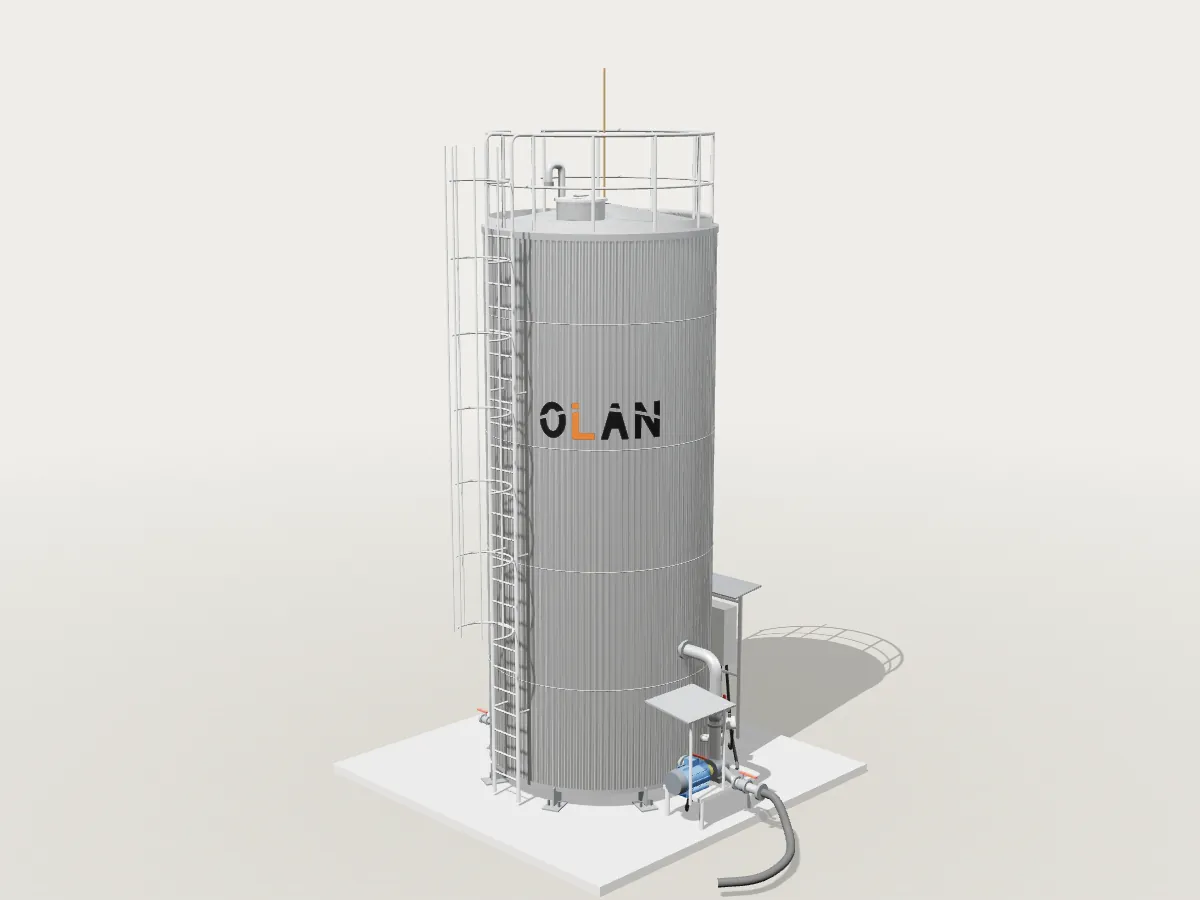

The tank in 3D
Rotate it, take it apart or look inside.

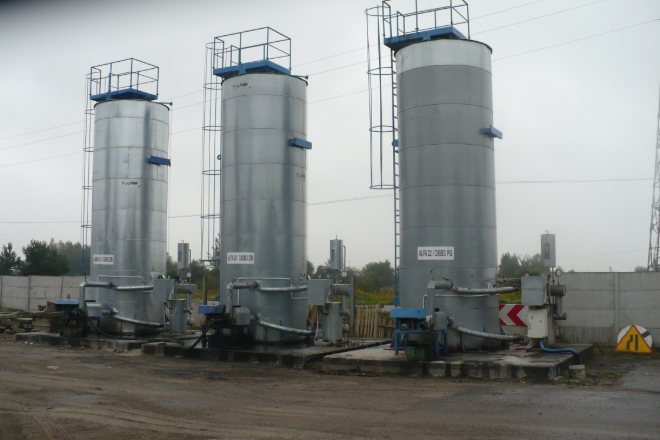

Tanks in operation
Equipment and accessories
- Pump with drive and insulated piping — ready for direct tanker filling
- Inlet flange for filling the tank
- Service ladder and top safety railing
- Lightning protection connection per industrial drawings
- Foundation layout and reinforcement drawings included in delivery
Documents to Download
PDF
Product Datasheet
Technical parameters, equipment, foundation requirements, transport and assembly
Interested in a tank loan with your emulsion supplies?we will agree the terms · Ing. Piotr Pasz, Managing Director · +420 724 270 357 · piotr.pasz@pasz.eu
